Deep linking enables seamless navigation to specific in-app content, enhancing user engagement by directing users to targeted screens within your Unity application. The AppTrove Unity SDK supports two types of deep linking: Normal Deep Linking (for users with the app installed) and Deferred Deep Linking (for users who install the app via a deep link). This section outlines the setup and implementation for both Android and iOS platforms.

Prerequisites​

  • AppTrove Unity SDK installed and initialized in your Unity project (see Installation and Initialization)
  • A Trackier MMP account with access to the Trackier Panel
  • Unity Editor 2019.4 or later
  • For iOS: Xcode 12.0 or later
  • For Android: Android API 21 (Android 5.0) or later
  • Basic knowledge of C# scripting and platform-specific configurations (e.g., AndroidManifest.xml, Xcode)

Overview​

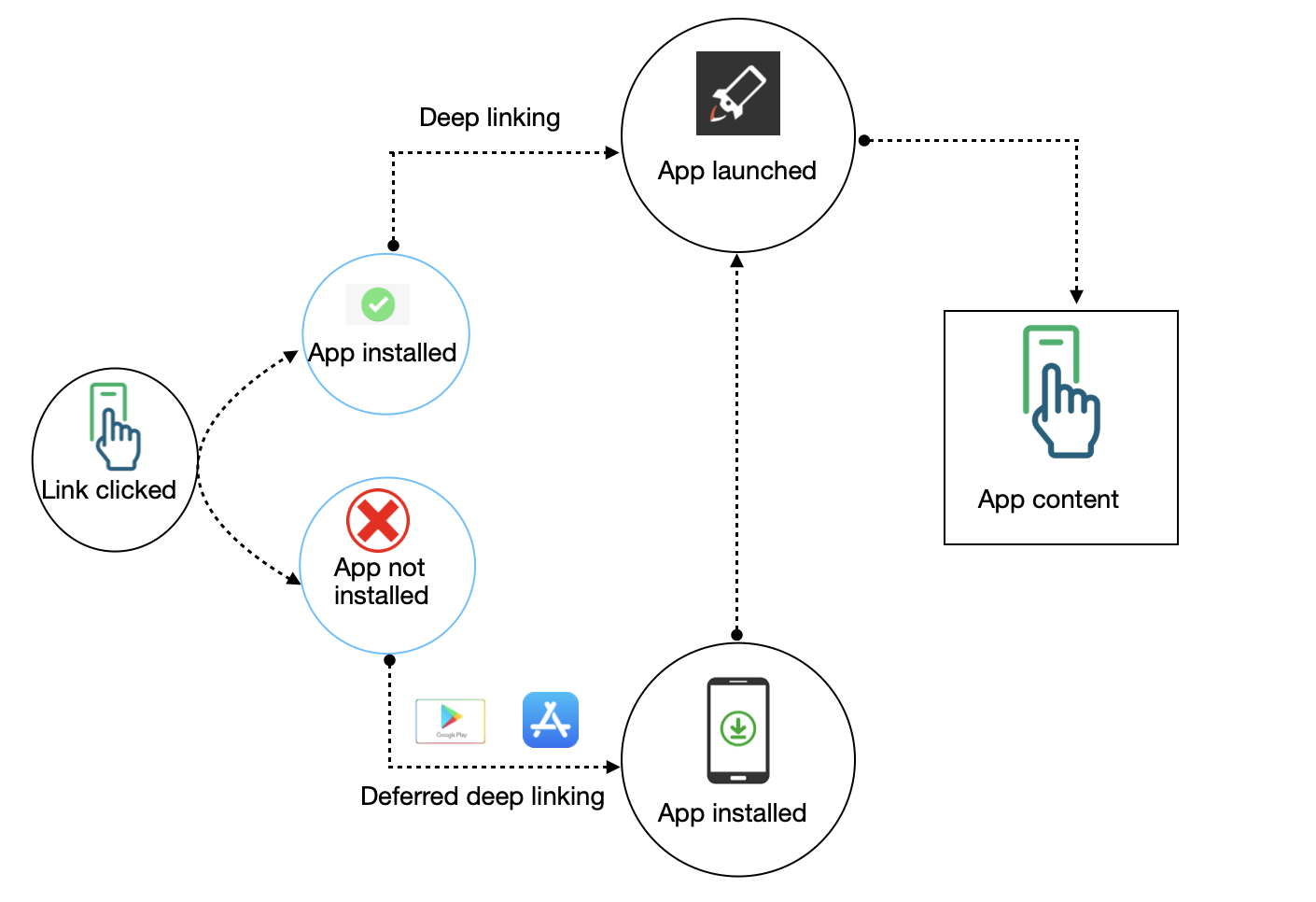

Deep linking redirects users to specific app content using URLs. The AppTrove SDK handles two scenarios:

  • Normal Deep Linking: When the app is already installed, the deep link opens the app and navigates to the specified screen.
  • Deferred Deep Linking: When the app is not installed, the deep link directs users to the app store. After installation, the SDK navigates to the specified screen upon first app launch.

Normal Deep Linking​

Normal deep linking allows users with the app installed to open specific app screens directly via a deep link URL. Configuration is required for both Android and iOS.

Android Configuration​

To handle deep links on Android, configure an activity in the AndroidManifest.xml file to respond to deep link URLs.

Step 1: Create or Edit AndroidManifest.xml​
  1. In Unity, create a custom AndroidManifest.xml file in the Assets/Plugins/Android directory.
  2. Add an activity with an intent-filter to handle deep links.
AndroidManifest.xml
<activity
    android:name=".Activity.FirstProduct"
    android:exported="true">
    <intent-filter>
        <action android:name="android.intent.action.VIEW" />
        <category android:name="android.intent.category.DEFAULT" />
        <category android:name="android.intent.category.BROWSABLE" />
        <data
            android:host="trackier.u9ilnk.me"
            android:pathPrefix="/product"
            android:scheme="https" />
    </intent-filter>
</activity>
https://trackier.u9ilnk.me/product?dlv=FirstProduct&quantity=10&pid=sms
  1. Build your Unity project for Android (go to File → Build Settings, select Android, and click Build).
  2. Install the APK on a device or emulator.
  3. Open the deep link URL in a browser or via an ad to verify it opens the specified activity.

iOS Configuration​

For iOS, configure Universal Links to enable deep linking, allowing the app to open directly from web URLs.

Step 1: Get App Bundle ID and Prefix ID​
  1. Log into your Apple Developer Account.
  2. Navigate to Certificates, IDs & Profiles > Identifiers > App IDs.
  3. Select your app and copy the Prefix ID and App Bundle ID.
Step 2: Add IDs in Trackier MMP​
  1. Log in to your Trackier Panel.
  2. Select your application and click the Action button.
  3. Navigate to UniLink in the Dashboard.
  4. Create a template by clicking the Action button in the header.
  5. Edit the template and add the Prefix ID and App Bundle ID under Link Behaviour (When application is installed).
Step 3: Configure Associated Domains in Xcode​
  1. Build your Unity project for iOS (go to File → Build Settings, select iOS, and click Build).
  2. Open the generated .xcodeproj file in Xcode.
  3. Select your project and target in Xcode.
  4. Go to the Capabilities tab and enable Associated Domains.
  5. Add the unilink subdomain from the Trackier MMP app settings in the format: applinks:subdomain.unilink.me.

Note: Trackier hosts the apple-app-site-association file to support Universal Links. Ensure the unilink subdomain is correctly configured in both Trackier MMP and Xcode.

  1. Build and install the app on an iOS device or simulator.
  2. Open a Universal Link (e.g., https://yourbrand.u9ilnk.me) in Safari to verify it opens the app.

Deferred Deep Linking​

Deferred deep linking directs users to the app store if the app is not installed. After installation, the SDK navigates to the specified screen upon first app launch. This requires setting a callback to handle the deep link URL.

Steps to Implement Deferred Deep Linking​

  1. Set a callback method on the TrackierConfig object using setDeferredDeeplinkDelegate.
  2. Initialize the SDK with the configured TrackierConfig.
  3. Handle the deep link URL in the callback to navigate to the desired screen.
main.cs
using UnityEngine;
using System.Collections;
using com.trackier.sdk;
using System;

public class NewMonoBehaviour : MonoBehaviour
{
    void Start()
    {
        // Initialize SDK with Deferred Deep Linking
        TrackierConfig trackierConfig = new TrackierConfig("abcf2270-xxxxxxxxxx-34903c6e1d53", "development");
        trackierConfig.setDeferredDeeplinkDelegate(DeferredDeeplinkCallback); // Set callback for deferred deep linking
        TrackierUnity.initialize(trackierConfig);
        Debug.Log("AppKey Initialized");
    }

    void Update()
    {
    }

    private void DeferredDeeplinkCallback(string deeplinkURL)
    {
        Debug.Log("Deferred deeplink reported!");
        if (deeplinkURL != null)
        {
            Debug.Log("Deeplink URL: " + deeplinkURL); // Handle the deep link URL
            // Add logic to navigate to the specified screen based on deeplinkURL
        }
        else
        {
            Debug.Log("Deeplink URL is null!");
        }
    }
}

Expected Outcome​

When a user installs the app via a deep link, the DeferredDeeplinkCallback method receives the deep link URL, allowing you to navigate to the specified content after the app launches.

Steps to Test Deferred Deep Linking​

Follow these comprehensive steps to properly test deferred deep linking functionality:

Prerequisites
  • APK File: Ensure you have the APK file integrated with the AppTrove SDK
  • Test Device: Android device with File Manager or WhatsApp access
  • Test URL: Valid deferred deep link URL with all required parameters

Step-by-Step Testing Process​

1. Prepare the APK

  • Store the APK file locally on your device
  • Keep it accessible in File Manager or WhatsApp (as a file message)
  • Ensure the APK contains the latest SDK integration

2. Trigger the Deferred Link Click on the test deep link containing all required parameters:

https://yourdomain.u9ilnk.me/d/Af2xeLPI77?pid=Ron+Media+Source&cost_value=0&cost_currency=GBP&lbw=1d&camp=Ron+Referral+Test&dlv=RonTestClass&p2=param_2_value&sdk_param=sdk_param_value
Expected Behavior

The link should redirect you to the Google Play Store page of your app.

3. Install from Local APK (Instead of Play Store)

  • Once redirected to the Play Store, minimize it (don't install from there)
  • Open the File Manager (or WhatsApp) where the prepared APK is stored
  • This simulates the deferred deep link scenario without using the actual Play Store

4. Install the APK Manually

  • Tap on the APK file and install it on the device
  • Grant necessary permissions during installation
  • Complete the installation process

5. Launch the App

  • Open the freshly installed app
  • The SDK should automatically process the deferred deep link
  • Verify that the deep link parameters are correctly received and processed
Important Notes
  • Always test with fresh app installations to simulate real user scenarios
  • Verify that the SDK is properly initialized before processing deep links
  • Test on both development and production environments
  • Ensure network connectivity during testing

Best Practices​

  • Test Deep Links Thoroughly: Test both normal and deferred deep links on Android and iOS to ensure correct navigation.
  • Use Unique Schemes for Android: Choose a unique android:scheme value in AndroidManifest.xml to avoid conflicts with other apps.
  • Secure Unilink Subdomain: Verify the unilink subdomain is correctly configured in Trackier MMP and Xcode to prevent Universal Link failures.
  • Handle Null URLs: Add fallback logic in the DeferredDeeplinkCallback to handle cases where deeplinkURL is null.
  • Log Deep Link Data: Use Debug.Log or similar logging to verify deep link URLs during development.
  • Comply with Privacy Regulations: Ensure deep link data handling complies with GDPR, CCPA, and other privacy laws.

Troubleshooting​

  • Deep Links Not Opening App (Android):
    • Verify the AndroidManifest.xml intent-filter configuration matches the deep link URL structure.
    • Ensure android:exported="true" is set for the activity.
    • Test the deep link URL in a browser or via an ad.
  • Universal Links Not Working (iOS):
    • Confirm the applinks:subdomain.unilink.me entry is correct in Xcode's Associated Domains.
    • Check that the apple-app-site-association file is hosted by Trackier and accessible.
    • Ensure the Prefix ID and App Bundle ID are correctly set in Trackier MMP.
  • Deferred Deep Link Callback Not Triggered:
    • Verify the setDeferredDeeplinkDelegate method is called before TrackierUnity.initialize.
    • Test the deferred deep link by uninstalling the app, clicking the deep link, and installing via the app store.
    • Check Unity Console logs for errors in the DeferredDeeplinkCallback.

For further assistance, refer to the Trackier Documentation Portal or contact Trackier support at support@trackier.com.
